Tech Specs

ROOM DETAILS

  • Capacity: 650
  • 11,000 square feet total.
  • 2 Levels: Ballroom level (cap. 479) & Balcony Level (cap 171). Balcony view and seating available.
  • Stage: 23’ wide x 17’ deep x 3’ high
  • Ceiling Height from deck – 15’6”
  • Fire is allowable at Bossanova Ballroom with proper City of Portland permits and safety protocols.
  • There are 2x hard points for rigging, suitable for aerialist performers.
  • Bossanova Ballroom is a 111 year old venue and load in is a 2nd floor walkup with ramps available.

AUDIO

  • MAINS SYSTEM:
  • 16 (8 PER SIDE) WorxAudio: XL1T-P-B – TOUR/POWERED
  • 6 (3 PER SIDE) : WorxAudio: TL218SST-P – TL218 Dual 18” Sub Bass Speaker, self powered
  • FOH & MONITORS
  • 2X Allen & Heath: SQ7 – 48- channel Digital Mixer, with 33 Faders, 6 Fader Layers, 32 x 32 USB Interface, and Network Audio Support
  • 6X Allen & Heath DX168 – 16- in/8-out Portable DX Expander for dLive Systems
  • CUSTOM RAMTECH CO. 48 CH. COPPER SPLIT 2-WAY
  • 2X 12 CH 175 FOOT COPPER DRIVE SNAKE
  • 14X Turbosound: TFM122M- AN – Co-axial 2500 Watt 2 Way 12″ Stage Monitor
  • 4X Turbosound: TSP152-AN – Powered 2 Way 15″ Loudspeaker
  • 4X Turbosound: TSP118B-AN – 3000 Watt 18″ Powered Subwoofer
  • STAGE EQUIPMENT:
  • 1X 24 CH STAGE SNAKE
  • 2X 16 CH STAGE SNAKE
  • 2X 8 CH STAGE SNAKE
  • 60X XLR MICROPHONE CABLES
  • 10X ATLAS 10 INCH BASE ROUND BOOM MIC STAND
  • 8X SHORT BOOM MIC STAND
  • 12X TRIPOD BOOM MIC STAND
  • 12X DIRECT INJECTION BOX
  • MICROPHONE LIST AVAILABLE ON REQUEST

LIGHTING

  • Fixtures
  • 5X American DJ Pro Par 56RGB
  • 10X Chauvet COLORdash Par H7IP
  • 8X Martin MAC 101
  • 6X American DJ Vizi BSW 300
  • 6X Chauvet Intimidator Wash Zoom 450 IRC
  • CHAMSYS MagicQ M60 LIGHTING CONTROL SURFACE LINKED TO 3 UNIVERSE THROUGH ARTNET

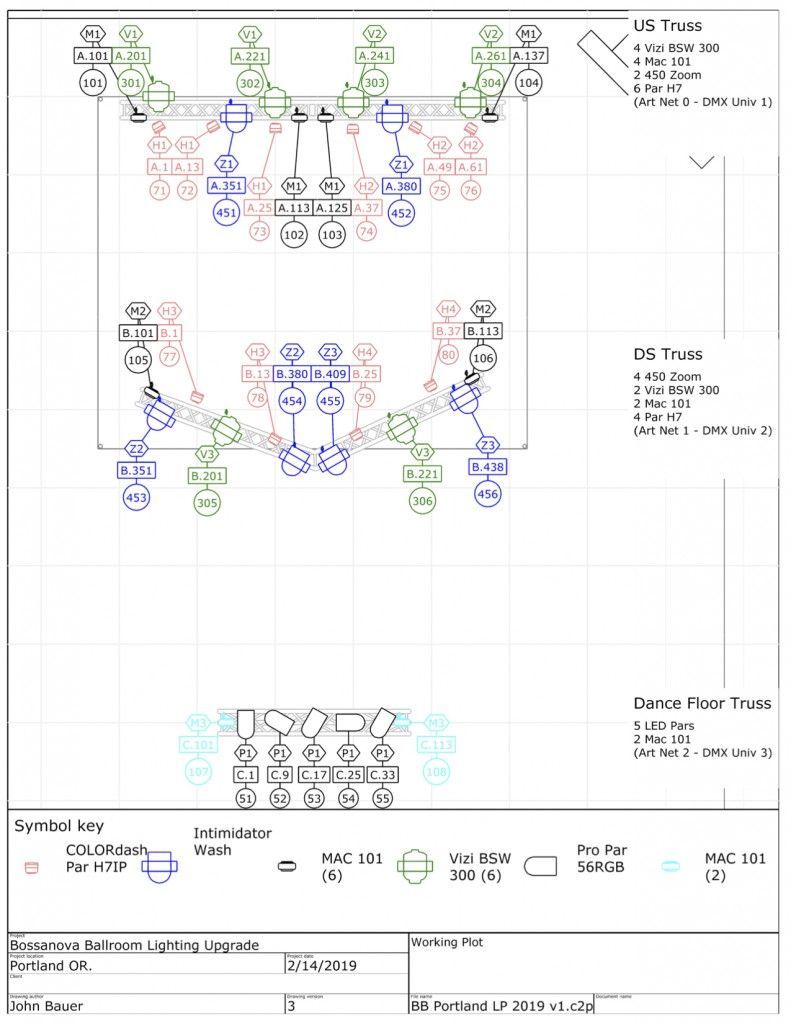

BB-lighting-map-image-791x1024 (1).jpg
